Power Roller Conveyor Line Mac

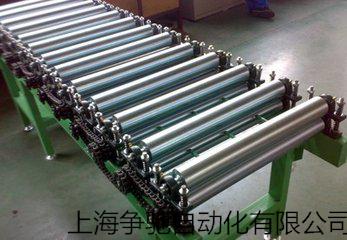

Power roller conveyor line
Article source：http://www.gywsjd.cn Release time：2016-02-22 15:50 Browse times：
Technical parameter:
Power roller conveyor motor for power driven roller to complete the transfer, applicable to all types of boxes, bags, trays and other pieces of cargo transport, bulk materials, small items or irregular items need to be placed in the tray or container for conveying. Power roller conveyor is mainly composed of roller, leg, brace, driving device, control device, adjustable foot etc..
Power roller conveyor is easy to interface between the filter, can be used a number of roller lines and other transportation equipment or plane composition complex logistics delivery system, multi process. The plot can be placed to achieve material accumulation conveyor roller.
Power roller conveyor applies to the bottom is flat goods transport, can achieve a variety of shunt transmission line characteristics. It has the characteristics of large conveying capacity, portability, convenient maintenance and so on. It is the most widely used type of conveyor.
Rack optional material: carbon steel, stainless steel, aluminum alloy, etc..
Roller material: galvanized steel, carbon steel, carbon steel, stainless steel, plastic bags, PVC, ABS Aluminum Alloy.
Roller conveyor chain conveyor, double chain conveyor, belt conveyor and other "O".
Custom power roller conveyor please call or please confirm the following technical parameters:
1, conveying the length, width and height of the object;
2, the weight of each delivery unit;
3, the bottom of the conveyor condition;
4, there are no special requirements on the working environment (such as: humidity, high temperature, chemicals, etc.);
5, conveyor speed;
6, other special custom requirements;
To ensure that the goods can be transported smoothly, must at any point in time is at least three roller and conveying material to keep contact.
When necessary, the soft bag packaging should be transported with the pallet.
